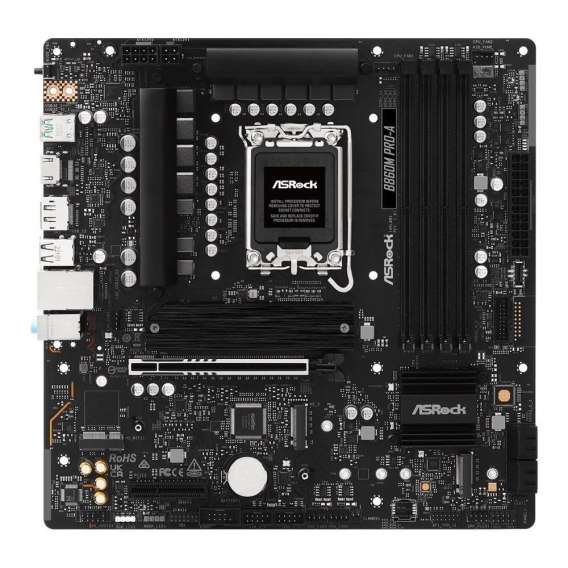

Płyta ASRock B860M Pro-A /B860/DDR5/SATA3/M.2/USB3.2/PCIe5.0/s.1851/M-ATX
Symbol:
B860M Pro-A
Dostępność:
Mało
18
szt.
Cena:601.42
szt.
Dostępność i dostawa
Cena przesyłki:
0
Kurier (Pobranie)0
Odbiór osobisty0
Paczkomaty InPost12
Poczta Polska15
Poczta Polska (Pobranie)20
Kurier35
Kod kreskowy:
EAN:
4711581490291
Gniazdo procesora: Socket 1851
Obsługiwane typy procesorów: Intel Core Ultra Processors (series 2)
Uwagi do procesora: - Supports Intel® Hybrid Technology, - Supports Intel® Turbo Boost Max 3.0 Technology, - Supports Intel® Thermal Velocity Boost (TVB), - Supports Intel® Adaptive Boost Technology (ABT), - Integrated NPU for dedicated AI acceleration
Format płyty: Micro-ATX
BIOS: 256Mb AMI UEFI Legal BIOS with GUI support
Chipset płyty głównej: Intel® B860
Ilość złącz pamięci DDR5: 4
Maksymalna wielkość pamięci: 256 GB
Tryb pracy pamięci RAM: Dual Channel
Standard pamięci: DDR5-8666+ (OC)
Uwagi do pamięci RAM: - Supports DDR5 non-ECC, un-buffered memory up to 8666+(OC), - 1DPC 1R Up to 8666+ MHz (OC), 5600 MHz Natively, - 1DPC 2R Up to 6800+ MHz (OC), 5600 MHz Natively, - 2DPC 1R Up to 6533+ MHz (OC), 4800 MHz Natively, - 2DPC 2R Up to 5600+ MHz (OC), 4400 MHz Natively, - Supports Clocked Unbuffered DIMM (CUDIMM), - Supports Intel® Extreme Memory Profile (XMP) 3.0x
Zintegrowany kontroler SATA: Chipset+CPU: 4x SATA III 6Gb/s - RAID 0,1,10,5 + 3x M.2
Uwagi do kontrolera SATA: CPU:, - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4, (128 Gb/s) mode, Chipset:, - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2230/2242/2260/2280, PCIe Gen4x4 (64 Gb/s) mode, - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4, (64 Gb/s) mode, - 4 x SATA3 6.0 Gb/s Connectors, Supports Intel® Volume Management Device (VMD), Supports NVMe SSD as boot disks
Wbudowana karta graficzna: Intel® Xe LPG Graphics Architecture
Gniazda karty graficznej: HDMI, DisplayPort
Uwagi do karty graficznej: - 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max., resolution up to 4K 120Hz, - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max., resolution up to 8K 60Hz / 5K 120Hz, Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported, only with processors which are GPU integrated
Zintegrowana karta dźwiękowa: Realtek® ALC 897 7.1-Channel High Definition Audio CODEC
Uwagi do złącz PCI: CPU:, - 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode, Chipset:, - 1 x PCIe 4.0 x4 Slot (PCIE2), supports x4 mode, - 1x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and, Intel® CNVio/CNVio2 (Integrated WiFi/BT), Supports NVMe SSD as boot disks
Port LAN: 1x 2,5 Gigabit LAN 10/100/1000/2500 Mb/s (Dragon RTL8125BG)
Uwagi do karty sieciowej: - Supports Dragon 2.5G LAN Software, - Smart Auto Adjust Bandwidth Control, - Visual User Friendly UI, - Visual Network Usage Statistics, - Optimized Default Setting for Game, Browser, and Streaming Modes, - User Customized Priority Control
Maksymalna ilość portów USB 2.0: 6
Maksymalna ilość portów USB 3.x: 7
Porty USB na panelu tylnym: 2x USB 2.0 + 3x USB 3.0 + 1x USB 3.2 Type-C
Gniazda USB na płycie głównej: 2x USB 2.0 (4 porty) + 1x USB 3.0 (2 porty) + 1x USB 3.0 Type-C (1 port)
Port Wi-Fi: Nie
Port Bluetooth: Nie
Port PS/2: Brak
Port szeregowy (COM): 1x wewnętrzne gniazdo portu COM
Port równoległy (LPT): Brak
Inne porty i gniazda: SPI TPM header (14-1pin), Power LED and Speaker Header, RGB LED Header, 3x Addressable LED Headers, 2x CPU Fan connector(s), 3x Chassis Fan Connectors, AIO Pump Fan Connector, 2x Antenna Mounting Points, BIOS FlashBack button
2x USB 2.0 (4 porty) + 1x USB 3.0 (2 porty) + 1x USB 3.0 Type-C (1 port)
Gniazdo procesora:
Socket 1851
Gniazdo zasilania:
ATX (24-pin) + ATX12V (8-pin) + ATX12V (4-pin)
Ilość złącz pamięci DDR5:
4
Inne porty i gniazda:
2x Antenna Mounting Points, 2x CPU Fan connector(s), 3x Addressable LED Headers, 3x Chassis Fan Connectors, AIO Pump Fan Connector, BIOS FlashBack button , Power LED and Speaker Header, RGB LED Header, SPI TPM header (14-1pin)
Maksymalna ilość portów USB 2.0:
6
Maksymalna ilość portów USB 3.x:
7
Maksymalna wielkość pamięci:
256 GB
Obsługiwane typy procesorów:
Intel Core Ultra Processors (series 2)
Opakowanie:
BOX
Port Bluetooth:
Nie
Port LAN:
1x 2,5 Gigabit LAN 10/100/1000/2500 Mb/s (Dragon RTL8125BG)
Port PS/2:
Brak
Port równoległy (LPT):
Brak
Port szeregowy (COM):
1x wewnętrzne gniazdo portu COM
Port Wi-Fi:
Nie
Porty USB na panelu tylnym:
2x USB 2.0 + 3x USB 3.0 + 1x USB 3.2 Type-C
Standard pamięci:
DDR5-8666+ (OC)
Tryb pracy pamięci RAM:
Dual Channel
Uwagi do karty graficznej:
- 1x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max., - 1x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max., Intel UHD Graphics Built-in Visuals and the VGA outputs can be supported, only with processors which are GPU integrated, resolution up to 4K 120Hz, resolution up to 8K 60Hz / 5K 120Hz
Uwagi do karty sieciowej:
- Optimized Default Setting for Game, Browser, and Streaming Modes, - Smart Auto Adjust Bandwidth Control, - Supports Dragon 2.5G LAN Software, - User Customized Priority Control, - Visual Network Usage Statistics, - Visual User Friendly UI
Uwagi do kontrolera SATA:
- 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4, - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2230/2242/2260/2280, - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4, - 4x SATA3 6.0 Gb/s Connectors, (128 Gb/s) mode, (64 Gb/s) mode, Chipset:, CPU:, PCIe Gen4x4 (64 Gb/s) mode, Supports Intel® Volume Management Device (VMD), Supports NVMe SSD as boot disks
Uwagi do pamięci RAM:
- 1DPC 1R Up to 8666+ MHz (OC), 5600 MHz Natively, - 1DPC 2R Up to 6800+ MHz (OC), 5600 MHz Natively, - 2DPC 1R Up to 6533+ MHz (OC), 4800 MHz Natively, - 2DPC 2R Up to 5600+ MHz (OC), 4400 MHz Natively, - Supports Clocked Unbuffered DIMM (CUDIMM), - Supports DDR5 non-ECC, un-buffered memory up to 8666+(OC), - Supports Intel® Extreme Memory Profile (XMP) 3.0x
