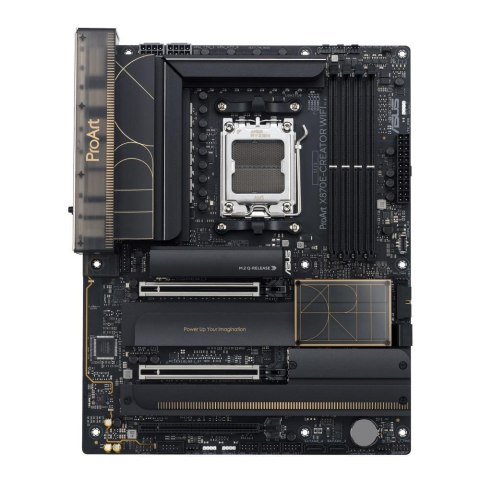

Płyta Asus ProArt X870E-CREATOR WIFI /AMD X870/DDR5/SATA3/M.2/USB4/WiFi/BT/PCIe5.0/AM5/ATX
Symbol:
PROART X870E-CREATOR WIFI
Dostępność:
Mało
13
szt.
Cena:2600.27
szt.
Dostępność i dostawa
Cena przesyłki:
0
Kurier (Pobranie)0
Odbiór osobisty0
Kurier0
Paczkomaty InPost12
Poczta Polska15
Poczta Polska (Pobranie)20
Kod kreskowy:
EAN:
4711387730775
Gniazdo procesora: Socket AM5
Obsługiwane typy procesorów: AMD Ryzen™ (AM5)
Uwagi do procesora: AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors
Format płyty: ATX
BIOS: 256 Mb Flash ROM, UEFI AMI BIOS WOL by PME, PXE
Chipset płyty głównej: AMD X870
Ilość złącz pamięci DDR5: 4
Maksymalna wielkość pamięci: 192 GB
Tryb pracy pamięci RAM: Dual Channel
Uwagi do pamięci RAM: Supports up to 8000+MT/s(OC) with Ryzen 9000, 8000 & 7000 Series, ECC and Non-ECC Un-buffered DIMM, Supports AMD Extended Profiles for Overclocking (EXPO), ASUS Enhanced Memory Profile (AEMP), Supported memory types, data rate(Speed), and number of DRAM module vary, depending on the CPU and memory configuration, for more information refer, Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function
Zintegrowany kontroler SATA: Chipset+CPU: 4x SATA III 6Gb/s - RAID 0,1,10,5 + 4x M.2
Uwagi do kontrolera SATA: AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors:, - M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode), - M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode), AMD X870E Chipset:, - M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode), - M.2_4 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode), - 4 x SATA 6Gb/s ports, PCIEX16(G5)_2 slot shares bandwidth with M.2_2, AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/, 0/1/5/10. RAID 5 Function is only supported by AMD Ryzen 9000series CPU
Wbudowana karta graficzna: Brak lub AMD Radeon™ Graphics (zależy od procesora)
Gniazda karty graficznej: HDMI, 2x USB4 Type-C
Uwagi do karty graficznej: Graphics specifications may vary between CPU types. Please refer to, AMD CPU specifications, Supports max. 8K@60Hz as specified in DisplayPort 1.4, Supports 4K@60Hz as specified in HDMI 2.1, Output at USB4_EC1 and USB4_EC2, each requires a USB-C to DisplayPort, adapter cable. VGA resolution support depends on processors' or graphic, cards' resolution
Zintegrowana karta dźwiękowa: Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC
Uwagi do karty dźwiękowej: Impedance sense for front and rear headphone outputs, Internal audio Amplifier to enhance the highest quality sound for, headphone and speakers, Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking, High quality 120 dB SNR stereo playback output and 113 dB SNR recording, input (Line-in), Supports up to 32-Bit/192 kHz playback, Audio Shielding, Premium audio capacitors, Dedicated audio PCB layers, Unique de-pop circuit, Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for, 7.1 Surround Sound audio, A chassis with an HD audio module in the front panel is required to, support 7.1 Surround Sound audio output
Złącza PCI Express x16: 3
Uwagi do złącz PCI: AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors:, - 2 x PCIe 5.0 x16 slots (support x16 or x8/x8 modes), AMD X870E Chipset:, - 1 x PCIe 4.0 x16 slot (supports x4 mode), Please check the PCIe bifurcation table on the support, PCIEX16(G5)_2 shares bandwidth with M.2_2 slot, To ensure compatibility of the device installed, please refer to
Port LAN: 1x 10 Gigabit LAN Marvell® AQtion, 1x 2,5 Gigabit LAN 100/1000/2500 Mb/s (Intel®)
Uwagi do karty sieciowej: ASUS LANGuard
Maksymalna ilość portów USB 2.0: 7
Maksymalna ilość portów USB 3.x: 11
Maksymalna ilość portów USB 4.0: 2
Porty USB na panelu tylnym: 1x USB 2.0 + 7x USB 3.1 + 1x USB 3.2 Type-C + 2 x USB4 Type-C
Gniazda USB na płycie głównej: 3x USB 2.0 (6 portów) + 1x USB 3.0 (2 porty) + 1x USB 3.2 Type-C (1 port)
Port Wi-Fi: IEEE 802.11a/b/g/n/ac/ax/be
Port Bluetooth: Bluetooth V5.4
Uwagi do WiFi / BT: 2x2 Wi-Fi 7 (802.11be), Supports 2.4/5/6GHz frequency band, Supports Wi-Fi 7 320MHz bandwidth, up to 6.5Gbps transfer rate, Wi-Fi features may vary depending on the operating system, For Windows 11, Wi-Fi 7 will require 24H2 or later version for full, functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E, For Windows 10, please note that no driver is available, refer to the, Wi-Fi chipset vendor's website for details, Wi-Fi 6GHz frequency band and bandwidth regulatory may vary, between countries, The Bluetooth version may vary, please refer to the Wi-Fi module, manufacturer's website for the latest specifications
Port PS/2: Brak
Port szeregowy (COM): 1x wewnętrzne gniazdo portu COM
Port równoległy (LPT): Brak
Inne porty i gniazda: Wi-Fi module with an antenna connector, 4-pin Chassis Fan header, 4-pin CPU OPT Fan header, 4-pin AIO Pump header, 5x 4-pin Chassis Fan header(s), 3x Addressable Gen 2 header, CPU Over Voltage jumper, 10-1 pin System Panel header, Thermal Sensor connectors, BIOS FlashBack button , Clear CMOS button(s)
3x USB 2.0 (6 portów) + 1x USB 3.0 (2 porty) + 1x USB 3.2 Type-C (1 port)
Gniazdo procesora:
Socket AM5
Gniazdo zasilania:
ATX (24-pin) + 2x ATX12V (8-pin)
Ilość złącz pamięci DDR5:
4
Inne porty i gniazda:
10-1 pin System Panel header, 3x Addressable Gen 2 header, 4-pin AIO Pump header, 4-pin Chassis Fan header, 4-pin CPU OPT Fan header, 5x 4-pin Chassis Fan header(s), BIOS FlashBack button , Clear CMOS button(s), CPU Over Voltage jumper, Thermal Sensor connectors, Wi-Fi module with an antenna connector
Maksymalna ilość portów USB 2.0:
7
Maksymalna ilość portów USB 3.x:
11
Maksymalna ilość portów USB 4.0:
2
Maksymalna wielkość pamięci:
192 GB
Obsługiwane typy procesorów:
AMD Ryzen™ (AM5)
Port Bluetooth:
Bluetooth V5.4
Port LAN:
1x 10 Gigabit LAN Marvell® AQtion, 1x 2,5 Gigabit LAN 100/1000/2500 Mb/s (Intel®)
Port PS/2:
Brak
Port równoległy (LPT):
Brak
Port szeregowy (COM):
1x wewnętrzne gniazdo portu COM
Port Wi-Fi:
IEEE 802.11a/b/g/n/ac/ax/be
Porty USB na panelu tylnym:
1x USB 2.0 + 7x USB 3.1 + 1x USB 3.2 Type-C + 2 x USB4 Type-C
Tryb pracy pamięci RAM:
Dual Channel
Uwagi do karty dźwiękowej:
7.1 Surround Sound audio, A chassis with an HD audio module in the front panel is required to, Audio Shielding, Dedicated audio PCB layers, Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for, headphone and speakers, High quality 120 dB SNR stereo playback output and 113 dB SNR recording, Impedance sense for front and rear headphone outputs, input (Line-in), Internal audio Amplifier to enhance the highest quality sound for, Premium audio capacitors, support 7.1 Surround Sound audio output, Supports up to 32-Bit/192 kHz playback, Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking, Unique de-pop circuit
Uwagi do karty graficznej:
adapter cable. VGA resolution support depends on processors' or graphic, AMD CPU specifications, cards' resolution, Graphics specifications may vary between CPU types. Please refer to, Output at USB4_EC1 and USB4_EC2, each requires a USB-C to DisplayPort, Supports 4K@60Hz as specified in HDMI 2.1, Supports max. 8K@60Hz as specified in DisplayPort 1.4
Uwagi do karty sieciowej:
ASUS LANGuard
Uwagi do kontrolera SATA:
- 4 x SATA 6Gb/s ports, - M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode), - M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode), - M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode), - M.2_4 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode), 0/1/5/10. RAID 5 Function is only supported by AMD Ryzen™ 9000 series CPU, AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/, AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors:, AMD X870E Chipset:, PCIEX16(G5)_2 slot shares bandwidth with M.2_2
Uwagi do pamięci RAM:
ASUS Enhanced Memory Profile (AEMP), depending on the CPU and memory configuration, for more information refer, ECC and Non-ECC Un-buffered DIMM, Non-ECC, un-buffered DDR5 memory supports On-Die ECC function, Supported memory types, data rate(Speed), and number of DRAM module vary, Supports AMD Extended Profiles for Overclocking (EXPO™), Supports up to 8000+MT/s(OC) with Ryzen 9000, 8000 & 7000 Series
Uwagi do procesora:
AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors
Uwagi do WiFi / BT:
2x2 Wi-Fi 7 (802.11be), between countries, For Windows 10, please note that no driver is available, refer to the, For Windows 11, Wi-Fi 7 will require 24H2 or later version for full, functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E, manufacturer's website for the latest specifications, Supports 2.4/5/6GHz frequency band, Supports Wi-Fi 7 320MHz bandwidth, up to 6.5Gbps transfer rate, The Bluetooth version may vary, please refer to the Wi-Fi module, Wi-Fi 6GHz frequency band and bandwidth regulatory may vary, Wi-Fi chipset vendor's website for details, Wi-Fi features may vary depending on the operating system
Uwagi do złącz PCI:
- 1 x PCIe 4.0 x16 slot (supports x4 mode), - 2 x PCIe 5.0 x16 slots (support x16 or x8/x8 modes), AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors:, AMD X870E Chipset:, PCIEX16(G5)_2 shares bandwidth with M.2_2 slot, Please check the PCIe bifurcation table on the support, To ensure compatibility of the device installed, please refer to
Wbudowana karta graficzna:
Brak lub AMD Radeon™ Graphics (zależy od procesora)
Wymiary [S x W] (mm):
305 x 244
Wyposażenie dodatkowe:
1 x ACC Express Activation Key Card, 1 x ProArt ruler, 1x ASUS WiFi Q-Antenna, 1x DisplayPort cable, 1x M.2 Q-Latch package, 1x M.2 Q-Latch Q-Slide package for M.2 backplate, 1x Q-connector, 1x Quick start guide, 1x Thermal pad for M.2 22110, 2x Rubber Packages for M.2, 4x SATA 6Gb/s cables
Zintegrowana karta dźwiękowa:
Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC
Zintegrowany kontroler SATA:
Chipset+CPU: 4x SATA III 6Gb/s - RAID 0,1,10,5 + 4x M.2
Złącza PCI Express x16:
3
Zawiera baterię / akumulator:
Tak
