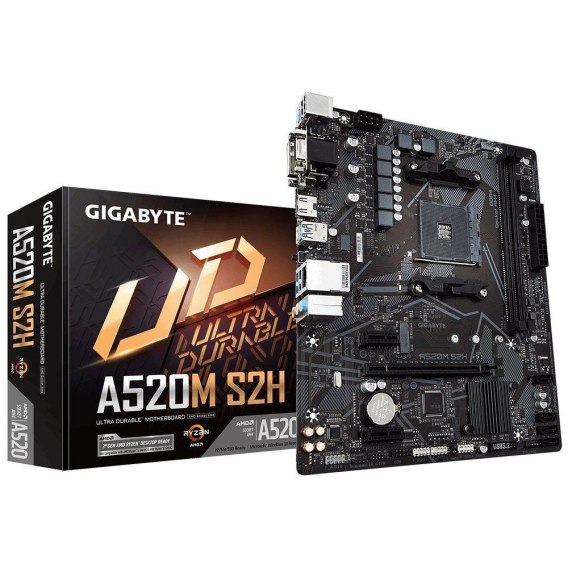

Płyta Gigabyte A520M S2H (rev. 1.0)/AMD A520M/DDR4/SATA3/M.2/USB3.0/PCIe3.0/AM4/mATX
Symbol:
A520M S2H (rev. 1.0)
Dostępność:
Mało
10
szt.
Cena:269.82
szt.
Dostępność i dostawa
Cena przesyłki:
0
Kurier (Pobranie)0
Odbiór osobisty0
Paczkomaty InPost12
Poczta Polska15
Poczta Polska (Pobranie)20
Kurier35
Kod kreskowy:
EAN:
4719331809720
Gniazdo procesora: Socket AM4 (1331)
Obsługiwane typy procesorów: AMD Ryzen™
Uwagi do procesora: AMD Socket AM4, support for: 3rd Generation AMD Ryzen™ processors / 3rd, Generation AMD Ryzen™ with Radeon™ Graphics processors, * Please refer "CPU Support List" for more information *
Uwagi do pamięci RAM: Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules, Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules, Support for Extreme Memory Profile (XMP) memory modules, Please refer "Memory Support List" for more information
Zintegrowany kontroler SATA: Chipset+CPU: 4x SATA III 6Gb/s - RAID 0,1,10 + 1x M.2
Uwagi do kontrolera SATA: 1xM.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe 3.0 x, x4/x2 SSD support)
Wbudowana karta graficzna: Brak lub AMD Radeon R-Series/Vega (zależy od procesora)
Gniazda karty graficznej: D-Sub, DVI-D, HDMI
Uwagi do karty graficznej: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz, 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz, 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz, Support for HDMI 2.1 version, HDCP 2.3, and HDR, Maximum shared memory of 16 GB, * The DVI-D port does not support D-Sub connection by adapter., * Support for HDMI 2.1 version, HDCP 2.3, and HDR.
Zintegrowana karta dźwiękowa: Realtek® ALC 887 8-Channel High Definition Audio CODEC
* Support for HDMI 2.1 version, HDCP 2.3, and HDR., * The DVI-D port does not support D-Sub connection by adapter., 1x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz, 1x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz, 1x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz, Maximum shared memory of 16 GB, Support for HDMI 2.1 version, HDCP 2.3, and HDR
Uwagi do kontrolera SATA:
1xM.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe 3.0 x, x4/x2 SSD support)
Uwagi do pamięci RAM:
Please refer "Memory Support List" for more information, Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules, Support for Extreme Memory Profile (XMP) memory modules, Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Uwagi do procesora:
* Please refer "CPU Support List" for more information *, AMD Socket AM4, support for: 3rd Generation AMD Ryzen™ processors / 3rd, Generation AMD Ryzen™ with Radeon™ Graphics processors
Uwagi do złącz PCI:
1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16, 2 x PCI Express x1 slots, supporting PCIe 3.0
Wbudowana karta graficzna:
Brak lub AMD Radeon R-Series/Vega (zależy od procesora)
Wymiary [S x W] (mm):
244 x 205
Zintegrowana karta dźwiękowa:
Realtek® ALC 887 8-Channel High Definition Audio CODEC
Zintegrowany kontroler SATA:
Chipset+CPU: 4x SATA III 6Gb/s - RAID 0,1,10 + 1x M.2
Złącza PCI Express x1:
2
Złącza PCI Express x16:
1
Dane producenta
Gigabyte Technology Co. Ltd.
NO. 6, BAO CHIANG ROAD
231 Xindian Dist., New Taipei
Taiwan
