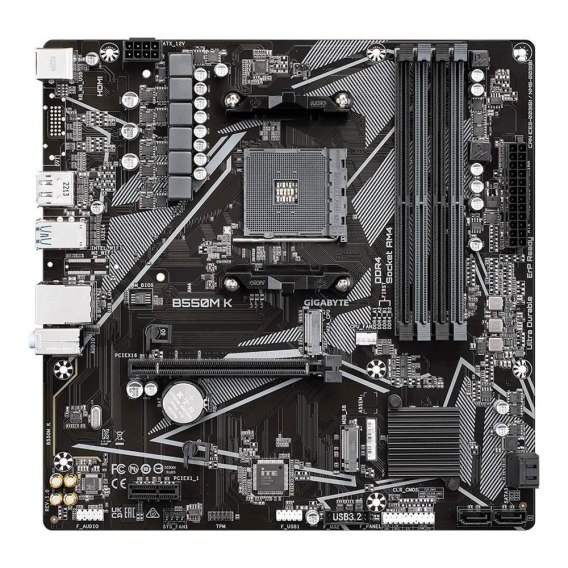

Płyta Gigabyte B550M K /AMD B550/DDR4/SATA3/M.2/USB3.0/PCIe4.0/AM4/mATX
Symbol:
B550M K (rev. 1.0)
Dostępność:
Mało
5
szt.
Cena:369.64
szt.
Dostępność i dostawa
Cena przesyłki:
0
Kurier (Pobranie)0
Odbiór osobisty0
Paczkomaty InPost12
Poczta Polska15
Poczta Polska (Pobranie)20
Kurier35
Kod kreskowy:
EAN:
4719331852764
Gniazdo procesora: Socket AM4 (1331)
Obsługiwane typy procesorów: AMD Ryzen™
Uwagi do procesora: AMD Socket AM4, support for: AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/, Ryzen™ 4000 G-Series, Ryzen™ 3000 Series and Ryzen™ 3000 G-Series, Please refer "CPU Support List" for more information
Uwagi do pamięci RAM: Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules, ECC Memory (ECC mode) support varies by CPU, Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules, Support Extreme Memory Profile (XMP)
Zintegrowany kontroler SATA: Chipset+CPU: 4x SATA III 6Gb/s - RAID 0,1,10 + 2x M.2
Uwagi do kontrolera SATA: 1x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3,, M key, type 2280 SSDs:, - AMD Ryzen™ 5000 Series and Ryzen™ 3000 Series Processors support SATA and, PCIe 4.0 x4/x2 SSDs, - AMD Ryzen™ Ryzen™ 5000 G-Series and Ryzen™ 4000 G-Series Processors, support SATA and PCIe 3.0 x4/x2 SSDs, 1x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2280 SSDs:, - Supporting PCIe 3.0 x2 SSDs, 4 x SATA 6Gb/s connectors, integrated in the Chipset:, - Support for RAID 0, RAID 1, and RAID 10
Wbudowana karta graficzna: Brak lub AMD Radeon R-Series/Vega (zależy od procesora)
Gniazda karty graficznej: DisplayPort, HDMI
Uwagi do karty graficznej: 1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz, Support for DisplayPort 1.4 version, HDCP 2.3, and HDR., 1x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz, Support for HDMI 2.1 version, HDCP 2.3, and HDR, Maximum shared memory of 16 GB
Zintegrowana karta dźwiękowa: Realtek ® 7.1 Surround Sound High Definition Audio CODEC
Uwagi do złącz PCI: 1x PCI Express x16 slot (PCIEX16), integrated in the CPU, - AMD Ryzen 5000 Series*/3000 Series Processors support PCIe 4.0 x16 mode, - AMD Ryzen™ Ryzen™ 5000 G-Series/4000 G-Series Processors support PCIe 3.0, x16 mode, 1x PCI Express x1 slot (PCIEX1), integrated in the Chipset, - Supporting PCIe 3.0 x1 mode
Port LAN: 1x Gigabit LAN 100/1000 Mb/s (Realtek®)
Maksymalna ilość portów USB 2.0: 6
Maksymalna ilość portów USB 3.x: 6
Porty USB na panelu tylnym: 4x USB 2.0 + 4x USB 3.0
Gniazda USB na płycie głównej: 2x USB 2.0 + 2x USB 3.0
Port PS/2: Port combo klawiatury/myszy PS/2
Port szeregowy (COM): Brak
Port równoległy (LPT): Brak
Inne porty i gniazda: CPU fan header, System fan header, 2x M.2 connectors, Trusted Platform Module header, Front Panel Audio Connector, Clear CMOS header
Gniazdo zasilania: ATX (24-pin) + ATX12V (8-pin)
Wymiary [S x W] (mm): 244 x 174
Opakowanie: BOX
Zawiera baterię / akumulator: Tak
Informacje dodatkowe: Support for Windows 11/10 64-bit, Norton® Internet Security (OEM version), LAN bandwidth management software
1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz, 1x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz, Maximum shared memory of 16 GB, Support for DisplayPort 1.4 version, HDCP 2.3, and HDR., Support for HDMI 2.1 version, HDCP 2.3, and HDR
Uwagi do kontrolera SATA:
- AMD Ryzen™ 5000 Series and Ryzen™ 3000 Series Processors support SATA and, - AMD Ryzen™ Ryzen™ 5000 G-Series and Ryzen™ 4000 G-Series Processors, - Support for RAID 0, RAID 1, and RAID 10, - Supporting PCIe 3.0 x2 SSDs, 1x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3,, 1x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, 4x SATA 6Gb/s connectors, integrated in the Chipset, M key, type 2280 SSDs:, PCIe 4.0 x4/x2 SSDs, support SATA and PCIe 3.0 x4/x2 SSDs
Uwagi do pamięci RAM:
ECC Memory (ECC mode) support varies by CPU, Support Extreme Memory Profile (XMP), Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules, Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Uwagi do procesora:
AMD Socket AM4, support for: AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/, Please refer "CPU Support List" for more information, Ryzen™ 4000 G-Series, Ryzen™ 3000 Series and Ryzen™ 3000 G-Series
Uwagi do złącz PCI:
- AMD Ryzen 5000 Series*/3000 Series Processors support PCIe 4.0 x16 mode, - AMD Ryzen™ Ryzen™ 5000 G-Series/4000 G-Series Processors support PCIe 3.0, - Supporting PCIe 3.0 x1 mode, 1 x PCI Express x1 slot (PCIEX1), integrated in the Chipset, 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU, x16 mode
Wbudowana karta graficzna:
Brak lub AMD Radeon R-Series/Vega (zależy od procesora)
Wymiary [S x W] (mm):
244 x 174
Zintegrowana karta dźwiękowa:
Realtek ® 7.1 Surround Sound High Definition Audio CODEC
Zintegrowany kontroler SATA:
Chipset+CPU: 4x SATA III 6Gb/s - RAID 0,1,10 + 2x M.2
Złącza PCI Express x1:
1
Złącza PCI Express x16:
1
Zawiera baterię / akumulator:
Tak
Dane producenta
Gigabyte Technology Co. Ltd.
NO. 6, BAO CHIANG ROAD
231 Xindian Dist., New Taipei
Taiwan
