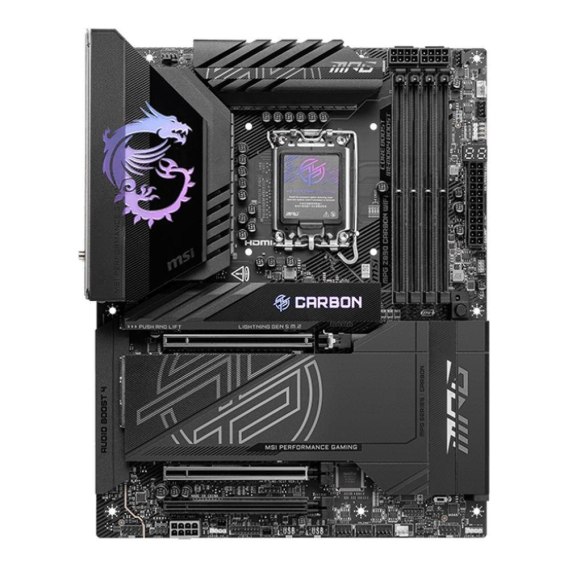

Płyta MSI MPG Z890 CARBON WIFI /Z890/DDR5/SATA3/M.2/TB4/WiFi/BT/PCIe5.0/s.1851/ATX
Symbol:
MPG Z890 CARBON WIFI
Dostępność:
Mało
6
szt.
Cena:1954.10
szt.
Dostępność i dostawa
Cena przesyłki:
0
Kurier (Pobranie)0
Odbiór osobisty0
Kurier0
Paczkomaty InPost12
Poczta Polska15
Poczta Polska (Pobranie)20
Kod kreskowy:
EAN:
4711377260794
Gniazdo procesora: Socket 1851
Obsługiwane typy procesorów: Intel Core Ultra Processors (series 2)
Format płyty: ATX
Chipset płyty głównej: Intel® Z890
Ilość złącz pamięci DDR5: 4
Maksymalna wielkość pamięci: 256 GB
Tryb pracy pamięci RAM: Dual Channel
Uwagi do pamięci RAM: Max. overclocking frequency:, - 1DPC 1R Max speed up to 9200+ MT/s, - 1DPC 2R Max speed up to 7200+ MT/s, - 2DPC 1R Max speed up to 6400+ MT/s, - 2DPC 2R Max speed up to 5600+ MT/s, Supports Intel® POR Speed and JEDEC Speed, Supports Memory Overclocking and Intel® XMP 3.0, Supports Non-ECC, Un-buffered memory, Supports CUDIMM
Zintegrowany kontroler SATA: Chipset+CPU: 4x SATA III 6Gb/s - RAID 0,1,5,10 + 5x M.2 + RAID 0,1,5,10
Uwagi do kontrolera SATA: - M.2_1 Source (From CPU) supports up to PCIe 5.0 x4,, supports 2280/2260 devices, - M.2_2 Source (From CPU) supports up to PCIe 4.0 x4,, supports 2280/2260 devices, - M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 ,, supports 2280/2260 devices, - M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4,, supports 22110/2280/2260 devices, - M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode,, supports 2280/2260 devices, Please refer to the manual for M.2 SSD heatsink restrictions.
Gniazda karty graficznej: HDMI, 2x Thunderbolt
Uwagi do karty graficznej: Support HDMI 2.1 with FRL port, maximum resolution of 8K 60Hz, Thunderbolt™ 4 ports, supporting DisplayPort 2.1 with UHBR20 over, USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz, Graphics specifications may vary depending on the CPU installed
Zintegrowana karta dźwiękowa: Realtek® ALC1220P Codec 7.1-Channel High Definition Audio
Uwagi do złącz PCI: - PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU), - PCI_E2 Gen PCIe 5.0 supports up to x8 (From CPU), - PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset), PCI_E1 supports BIOS adjustment to x8+x4+x4, PCI_E2 supports BIOS adjustment to x4+x4
Port LAN: 1x 5 Gigabit LAN Intel® Killer™ E5000B, 1x 2,5 Gigabit LAN 100/1000/2500 Mb/s (Intel® I226V)
Maksymalna ilość portów USB 2.0: 4
Maksymalna ilość portów USB 3.x: 16
Maksymalna ilość portów USB 4.0: 2
Porty USB na panelu tylnym: 10x USB 3.1 + 1x USB 3.1 Type-C + 2 Thunderbolt 4/USB4
Gniazda USB na płycie głównej: 4x USB 2.0 + 4x USB 3.0 + 1x USB 3.2 Type-C
Port Wi-Fi: IEEE 802.11a/b/g/n/ac/ax/be
Port Bluetooth: Bluetooth V5.4
Uwagi do WiFi / BT: Intel® Killer™ BE1750x Wi-Fi 7, The Wireless module is pre-installed in the M.2 (Key-E) slot, Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps, Supports 802.11 a/ b/ g/ n/ ac/ ax/ be, Supports Bluetooth® 5.4**, MLO, 4KQAM, 6GHz band support may depend on every country's regulations and Wi-Fi 7, will be ready in Windows 11 version 24H2., The Bluetooth version may be updated, please refer to the Wi-Fi chipset, vendor's website for details. Bluetooth 5.4 will be ready in, Windows 11 version 24H2.
Port PS/2: Brak
Port szeregowy (COM): Brak
Port równoległy (LPT): Brak
Inne porty i gniazda: CPU Fan, Combo Fan (Pump_Sys Fan), 5x System Fan, EZ Conn-header (JAF_2), 2x Front Panel, Chassis Intrusion (JCI), Water Flow connector, Thermal Sensor connectors, 3x Addressable V2 RGB LED connector, RGB LED connector, TPM pin header
2x Front Panel, 3x Addressable V2 RGB LED connector, 5x System Fan, Chassis Intrusion (JCI), Combo Fan (Pump_Sys Fan), CPU Fan, EZ Conn-header (JAF_2), RGB LED connector, Thermal Sensor connectors, TPM pin header, Water Flow connector
Maksymalna ilość portów USB 2.0:
4
Maksymalna ilość portów USB 3.x:
16
Maksymalna ilość portów USB 4.0:
2
Maksymalna wielkość pamięci:
256 GB
Obsługiwane typy procesorów:
Intel Core Ultra Processors (series 2)
Opakowanie:
BOX
Port Bluetooth:
Bluetooth V5.4
Port LAN:
1x 2,5 Gigabit LAN 100/1000/2500 Mb/s (Intel® I226V), 1x 5 Gigabit LAN Intel® Killer™ E5000B
Port PS/2:
Brak
Port równoległy (LPT):
Brak
Port szeregowy (COM):
Brak
Port Wi-Fi:
IEEE 802.11a/b/g/n/ac/ax/be
Porty USB na panelu tylnym:
10x USB 3.1 + 1x USB 3.1 Type-C + 2 Thunderbolt 4/USB4
Tryb pracy pamięci RAM:
Dual Channel
Uwagi do karty graficznej:
Graphics specifications may vary depending on the CPU installed, Support HDMI 2.1 with FRL port, maximum resolution of 8K 60Hz, Thunderbolt™ 4 ports, supporting DisplayPort 2.1 with UHBR20 over, USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz
Uwagi do kontrolera SATA:
- M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 ,, - M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 ,, - M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4,, - M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4,, - M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode,, Please refer to the manual for M.2 SSD heatsink restrictions., supports 22110/2280/2260 devices, supports 2280/2260 devices
Uwagi do pamięci RAM:
- 1DPC 1R Max speed up to 9200+ MT/s, - 1DPC 2R Max speed up to 7200+ MT/s, - 2DPC 1R Max speed up to 6400+ MT/s, - 2DPC 2R Max speed up to 5600+ MT/s, Max. overclocking frequency:, Supports CUDIMM, Supports Intel POR Speed and JEDEC Speed, Supports Memory Overclocking and Intel XMP 3.0, Supports non-ECC, un-buffered memory
Uwagi do WiFi / BT:
6GHz band support may depend on every country's regulations and Wi-Fi 7 (12975), Intel® Killer™ BE1750x Wi-Fi 7, Supports 802.11 a/ b/ g/ n/ ac/ ax/ be, Supports Bluetooth® 5.4**, MLO, 4KQAM, Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps, The Bluetooth version may be updated, please refer to the Wi-Fi chipset, The Wireless module is pre-installed in the M.2 (Key-E) slot, vendor's website for details. Bluetooth 5.4 will be ready in (2289), will be ready in Windows 11 version 24H2., Windows 11 version 24H2.
Uwagi do złącz PCI:
- PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU), - PCI_E2 Gen PCIe 5.0 supports up to x8 (From CPU), - PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset), PCI_E1 supports BIOS adjustment to x8+x4+x4, PCI_E2 supports BIOS adjustment to x4+x4
Wymiary [S x W] (mm):
243,84 x 304,8
Zintegrowana karta dźwiękowa:
Realtek® ALC1220P Codec 7.1-Channel High Definition Audio
Zintegrowany kontroler SATA:
Chipset+CPU: 4x SATA III 6Gb/s - RAID 0,1,5,10 + 5x M.2 + RAID 0,1,5,10
Złącza PCI Express x16:
3
