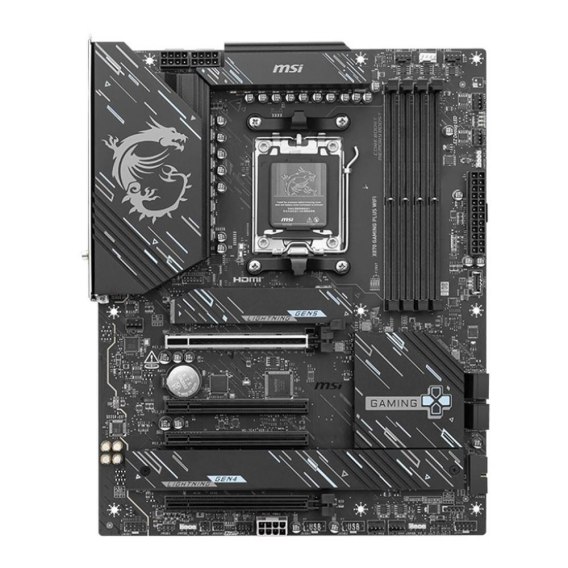

Płyta MSI X870 GAMING PLUS WIFI /AMD X870/DDR5/SATA3/M.2/USB4/WiFi/BT/PCIe5.0/AM5/ATX
Symbol:
X870 GAMING PLUS WIFI
1186.06
| Opinie | |
| Cena przesyłki | 0 |
| Dostępność |
Mało
|
| Zostaw telefon |
Gniazdo procesora: Socket AM5
Obsługiwane typy procesorów: AMD Ryzen™ (AM5)
Uwagi do procesora: Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors
Format płyty: ATX
Chipset płyty głównej: AMD X870
Ilość złącz pamięci DDR5: 4
Maksymalna wielkość pamięci: 256 GB
Tryb pracy pamięci RAM: Dual Channel
Standard pamięci: DDR5-4800, DDR5-5000, DDR5-5200, DDR5-5400, DDR5-5600 (OC), DDR5-5800 (OC), DDR5-6000 (OC), DDR5-6200 (OC), DDR5-6400 (OC), DDR5-6600 (OC), DDR5-6800 (OC), DDR5-7000 (OC), DDR5-7200 (OC), DDR5-7400 (OC), DDR5-7600 (OC), DDR5-7800 (OC), DDR5-8000 (OC), DDR5-8200 (OC)
Uwagi do pamięci RAM: Ryzen 9000 Series Processors max. overclocking frequency:, - 1DPC 1R Max speed up to 8200+ MT/s, - 1DPC 2R Max speed up to 6400+ MT/s, - 2DPC 1R Max speed up to 6400+ MT/s, - 2DPC 2R Max. speed up to 4800+ MHz
Zintegrowany kontroler SATA: Chipset+CPU: 4x SATA III 6Gb/s + 3x M.2
Uwagi do kontrolera SATA: - M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 ,, supports 2280/2260 devices, - M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 ,, supports 22110/2280 devices, - M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 ,, supports 2280/2260 devices, M2_1 slot:, - Supports up to PCIe 5.0 x4 (For Ryzen 9000/ 7000 Series processors), - Supports up to PCIe 4.0 x4 (For Ryzen 8000 Series processors), Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
Wbudowana karta graficzna: Brak lub AMD Radeon™ Graphics (zależy od procesora)
Gniazda karty graficznej: HDMI, USB Type-C
Uwagi do karty graficznej: Support HDMI 2.1, maximum resolution of 4K 60Hz, USB4 port, supporting DisplayPort 1.4 with HBR3 over USB Type-C,, maximum resolution of 4K 60Hz, Graphics specifications may vary depending on the CPU installed.
Zintegrowana karta dźwiękowa: Realtek® ALC897 7.1-Channel High Definition Audio
Gniazda karty dźwiękowej: 3x Audio Jack, Wewnętrzne gniazdo audio przedniego panelu
Złącza PCI Express x16: 4
Uwagi do złącz PCI: - PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU), - PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset), - PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset), - PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset), PCI_E1 slot:, - Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors), - Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors), - Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)
Port LAN: 1x 2,5 Gigabit LAN 100/1000/2500 Mb/s (Realtek® RTL8126VB)
Maksymalna ilość portów USB 2.0: 8
Maksymalna ilość portów USB 3.x: 8
Maksymalna ilość portów USB 4.0: 1
Porty USB na panelu tylnym: 4x USB 2.0 + 2x USB 3.0 + 2x USB 3.1 + 1x USB 3.2 Type-C + 1x USB4 Type-C
Gniazda USB na płycie głównej: 2x USB 2.0 (4 porty) + 1x USB 3.0 (2 porty) + 1x USB 3.1 Type-C (1 port)
Port Wi-Fi: IEEE 802.11a/b/g/n/ac/ax/be
Port Bluetooth: Bluetooth V5.4
Uwagi do WiFi / BT: Wi-Fi 7, The Wireless module is pre-installed in the M.2 (Key-E) slot, Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps, Supports Bluetooth 5.4, MLO, 4KQAM, 6GHz band support may depend on every country's regulations and Wi-Fi 7, will be ready in Windows 11 version 24H2, The Bluetooth version may be updated, please refer to the Wi-Fi chipset, vendor's website for details, Bluetooth 5.4 will be ready in Windows 11 version 24H2
Port PS/2: Brak
Port szeregowy (COM): Brak
Port równoległy (LPT): Brak
Inne porty i gniazda: CPU Fan, Combo Fan (Pump_Sys Fan), 6x System Fan, EZ Conn-header (JAF_1), 2x Front Panel, Złącze czujnika otwarcia obudowy, Tuning Controller Connector, 3x Addressable V2 RGB LED connector, RGB LED connector, Gniazdo modułu TPM, 4x EZ Debug LED, 2x Antenna Ports
Gniazdo zasilania: ATX (24-pin) + 2x ATX12V (8-pin) + PCIe (8-pin)
Wymiary [S x W] (mm): 243,84 x 304,8
Opakowanie: BOX
Wyposażenie dodatkowe: 2x SATA Cables, Cable Sticker, EZ Wi-Fi antenna, Quick Installation Guide, European Union Regulatory Notice, EZ M.2 Clip, EZ M.2 Clip II Remover, 1 to 2 EZ Conn-Cable (V1)
Informacje dodatkowe: Support for Windows 11 64-bit
Obsługiwane typy procesorów: AMD Ryzen™ (AM5)
Uwagi do procesora: Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors
Format płyty: ATX
Chipset płyty głównej: AMD X870
Ilość złącz pamięci DDR5: 4
Maksymalna wielkość pamięci: 256 GB
Tryb pracy pamięci RAM: Dual Channel
Standard pamięci: DDR5-4800, DDR5-5000, DDR5-5200, DDR5-5400, DDR5-5600 (OC), DDR5-5800 (OC), DDR5-6000 (OC), DDR5-6200 (OC), DDR5-6400 (OC), DDR5-6600 (OC), DDR5-6800 (OC), DDR5-7000 (OC), DDR5-7200 (OC), DDR5-7400 (OC), DDR5-7600 (OC), DDR5-7800 (OC), DDR5-8000 (OC), DDR5-8200 (OC)
Uwagi do pamięci RAM: Ryzen 9000 Series Processors max. overclocking frequency:, - 1DPC 1R Max speed up to 8200+ MT/s, - 1DPC 2R Max speed up to 6400+ MT/s, - 2DPC 1R Max speed up to 6400+ MT/s, - 2DPC 2R Max. speed up to 4800+ MHz
Zintegrowany kontroler SATA: Chipset+CPU: 4x SATA III 6Gb/s + 3x M.2
Uwagi do kontrolera SATA: - M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 ,, supports 2280/2260 devices, - M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 ,, supports 22110/2280 devices, - M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 ,, supports 2280/2260 devices, M2_1 slot:, - Supports up to PCIe 5.0 x4 (For Ryzen 9000/ 7000 Series processors), - Supports up to PCIe 4.0 x4 (For Ryzen 8000 Series processors), Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
Wbudowana karta graficzna: Brak lub AMD Radeon™ Graphics (zależy od procesora)
Gniazda karty graficznej: HDMI, USB Type-C
Uwagi do karty graficznej: Support HDMI 2.1, maximum resolution of 4K 60Hz, USB4 port, supporting DisplayPort 1.4 with HBR3 over USB Type-C,, maximum resolution of 4K 60Hz, Graphics specifications may vary depending on the CPU installed.
Zintegrowana karta dźwiękowa: Realtek® ALC897 7.1-Channel High Definition Audio
Gniazda karty dźwiękowej: 3x Audio Jack, Wewnętrzne gniazdo audio przedniego panelu
Złącza PCI Express x16: 4
Uwagi do złącz PCI: - PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU), - PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset), - PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset), - PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset), PCI_E1 slot:, - Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors), - Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors), - Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)
Port LAN: 1x 2,5 Gigabit LAN 100/1000/2500 Mb/s (Realtek® RTL8126VB)
Maksymalna ilość portów USB 2.0: 8
Maksymalna ilość portów USB 3.x: 8
Maksymalna ilość portów USB 4.0: 1
Porty USB na panelu tylnym: 4x USB 2.0 + 2x USB 3.0 + 2x USB 3.1 + 1x USB 3.2 Type-C + 1x USB4 Type-C
Gniazda USB na płycie głównej: 2x USB 2.0 (4 porty) + 1x USB 3.0 (2 porty) + 1x USB 3.1 Type-C (1 port)
Port Wi-Fi: IEEE 802.11a/b/g/n/ac/ax/be
Port Bluetooth: Bluetooth V5.4
Uwagi do WiFi / BT: Wi-Fi 7, The Wireless module is pre-installed in the M.2 (Key-E) slot, Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps, Supports Bluetooth 5.4, MLO, 4KQAM, 6GHz band support may depend on every country's regulations and Wi-Fi 7, will be ready in Windows 11 version 24H2, The Bluetooth version may be updated, please refer to the Wi-Fi chipset, vendor's website for details, Bluetooth 5.4 will be ready in Windows 11 version 24H2
Port PS/2: Brak
Port szeregowy (COM): Brak
Port równoległy (LPT): Brak
Inne porty i gniazda: CPU Fan, Combo Fan (Pump_Sys Fan), 6x System Fan, EZ Conn-header (JAF_1), 2x Front Panel, Złącze czujnika otwarcia obudowy, Tuning Controller Connector, 3x Addressable V2 RGB LED connector, RGB LED connector, Gniazdo modułu TPM, 4x EZ Debug LED, 2x Antenna Ports
Gniazdo zasilania: ATX (24-pin) + 2x ATX12V (8-pin) + PCIe (8-pin)
Wymiary [S x W] (mm): 243,84 x 304,8
Opakowanie: BOX
Wyposażenie dodatkowe: 2x SATA Cables, Cable Sticker, EZ Wi-Fi antenna, Quick Installation Guide, European Union Regulatory Notice, EZ M.2 Clip, EZ M.2 Clip II Remover, 1 to 2 EZ Conn-Cable (V1)
Informacje dodatkowe: Support for Windows 11 64-bit
Chipset płyty głównej:
AMD X870
Format płyty:
ATX
Gniazda karty dźwiękowej:
3x Audio Jack, Wewnętrzne gniazdo audio przedniego panelu
Gniazda karty graficznej:
HDMI, USB Type-C
Gniazda USB na płycie głównej:
2x USB 2.0 (4 porty) + 1x USB 3.0 (2 porty) + 1x USB 3.1 Type-C (1 port)
Gniazdo procesora:
Socket AM5
Gniazdo zasilania:
ATX (24-pin) + 2x ATX12V (8-pin) + PCIe (8-pin)
Ilość złącz pamięci DDR5:
4
Inne porty i gniazda:
2x Antenna Ports, 2x Front Panel, 3x Addressable V2 RGB LED connector, 4x EZ Debug LED, 6x System Fan, Combo Fan (Pump_Sys Fan), CPU Fan, EZ Conn-header (JAF_1), Gniazdo modułu TPM, RGB LED connector, Tuning Controller Connector, Złącze czujnika otwarcia obudowy
Maksymalna ilość portów USB 2.0:
8
Maksymalna ilość portów USB 3.x:
8
Maksymalna ilość portów USB 4.0:
1
Maksymalna wielkość pamięci:
256 GB
Obsługiwane typy procesorów:
AMD Ryzen™ (AM5)
Opakowanie:
BOX
Port Bluetooth:
Bluetooth V5.4
Port LAN:
1x 2,5 Gigabit LAN 100/1000/2500 Mb/s (Realtek® RTL8126VB)
Port PS/2:
Brak
Port równoległy (LPT):
Brak
Port szeregowy (COM):
Brak
Port Wi-Fi:
IEEE 802.11a/b/g/n/ac/ax/be
Porty USB na panelu tylnym:
4x USB 2.0 + 2x USB 3.0 + 2x USB 3.1 + 1x USB 3.2 Type-C + 1x USB4 Type-C
Standard pamięci:
DDR5-4800, DDR5-5000, DDR5-5200, DDR5-5400, DDR5-5600 (OC), DDR5-5800 (OC), DDR5-6000 (OC), DDR5-6200 (OC), DDR5-6400 (OC), DDR5-6600 (OC), DDR5-6800 (OC), DDR5-7000 (OC), DDR5-7200 (OC), DDR5-7400 (OC), DDR5-7600 (OC), DDR5-7800 (OC), DDR5-8000 (OC), DDR5-8200 (OC)
Tryb pracy pamięci RAM:
Dual Channel
Uwagi do karty graficznej:
Graphics specifications may vary depending on the CPU installed., maximum resolution of 4K 60Hz, Support HDMI 2.1, maximum resolution of 4K 60Hz, USB4 port, supporting DisplayPort 1.4 with HBR3 over USB Type-C,
Uwagi do kontrolera SATA:
- M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 ,, - M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 ,, - M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 ,, - Supports up to PCIe 4.0 x4 (For Ryzen 8000 Series processors), - Supports up to PCIe 5.0 x4 (For Ryzen 9000/ 7000 Series processors), M2_1 slot:, supports 22110/2280 devices, supports 2280/2260 devices, Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
Uwagi do pamięci RAM:
- 1DPC 1R Max speed up to 8200+ MT/s, - 1DPC 2R Max speed up to 6400+ MT/s, - 2DPC 1R Max speed up to 6400+ MT/s, - 2DPC 2R Max. speed up to 4800+ MHz, Ryzen 9000 Series Processors max. overclocking frequency:
Uwagi do procesora:
Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors
Uwagi do WiFi / BT:
6GHz band support may depend on every country's regulations and Wi-Fi 7, Bluetooth 5.4 will be ready in Windows 11 version 24H2, Supports Bluetooth 5.4, MLO, 4KQAM, Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps, The Bluetooth version may be updated, please refer to the Wi-Fi chipset, The Wireless module is pre-installed in the M.2 (Key-E) slot, vendor's website for details, Wi-Fi 7, will be ready in Windows 11 version 24H2
Uwagi do złącz PCI:
- PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU), - PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset), - PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset), - PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset), - Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor), - Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors), - Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors), PCI_E1 slot:
Wbudowana karta graficzna:
Brak lub AMD Radeon™ Graphics (zależy od procesora)
Wymiary [S x W] (mm):
243,84 x 304,8
Wyposażenie dodatkowe:
1 to 2 EZ Conn-Cable (V1), 2x SATA Cables, Cable Sticker, European Union Regulatory Notice, EZ M.2 Clip, EZ M.2 Clip II Remover, EZ Wi-Fi antenna, Quick Installation Guide
Zintegrowana karta dźwiękowa:
Realtek® ALC897 7.1-Channel High Definition Audio
Zintegrowany kontroler SATA:
Chipset+CPU: 4x SATA III 6Gb/s + 3x M.2
Złącza PCI Express x16:
4
Dane producenta
Micro-Star Int'L Co., Ltd.
NO.69,LIDE ST.,ZHONEGHE DIST.
235 NEW TAIPEI CITY
Taiwan
886930361931
acs@msi.com
Osoba odpowiedzialna
MSI Computer Europe B.V.
Science Park 5706
5692ER Son Eindhoven
Netherlands
+31-40-267-6100
GPSR@msi.com
